Blender PyFlow R&D

repo https://github.com/hannesdelbeke/blender-pyflow
mentioned this on blender artists node thread

Goal

i want to add PyFlow support as a Blender addon

  • Why do i want node base editor in Blender?

on hold

Since I don’t have a strong answer for this I’ll put this R&D on hold.
Best use case likely is marketing. users love this shit.
could use this to sell the idea of plugget. download nodes on a marketplace

in combination with plugget, a user can download some nodes. and e.g. run validation node on a mesh. set up a quick and simple pipeline.

The idea of a universal node graph is cool. But what really matters is environment management and validation

workflow

how i imagine users would use this.

  1. open the node editor from the menu window/pyflow node editor
  2. create a node graph, or load a demo
  3. click run

features

  • open editor
  • run node network
  • run node network from CLI
  • see output of node network on fail
    • create a sphere with position
      8/3 8/2 8/1 8/0->error 8/-1 8/-2
      divide by 0 exception
    • show case where we “warn”, node execution continues
    • show case where we “fail” node execution stops

demos

include demos with the project to show off features:
- create a grid of cubes
- create a circle with a timer, that creates spheres in a circle in x seconds.
- run a custom piece of code/addon

Progress

  • launch pyflow in blender
  • add nodes
    right click in the canvas, a node context menu pops up. drag and drop nodes in the canvas to place them.
  • learn how to control flow

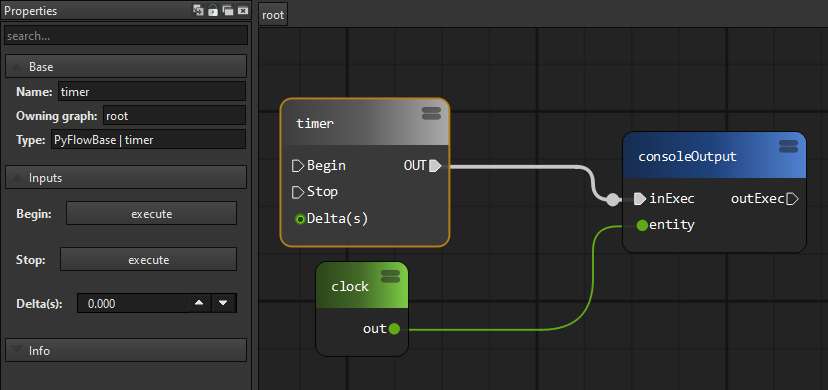

    i can create a timer node, and hook it up to console output node
    select the timer node and the properties panel will show execute buttons. Click start to start the timer, and stop to stop it. it prints None every second in Blender’s console.
    the doOnce node is similar, and executes once when clicking the button.
    Blender PyFlow-1725710300844.jpeg

delta time issue

Delta time seems to not work well. e.g. when set to 0.1, it doesn’t print every 0.1 sec. Timing is also irregular. sometimes slow, sometimes fast.
likely a Qt / Blender timer hookup issue. running without bqt atm.

  • learn how to make custom node
    made a custom node createBlenderCube that creates a cube in Blender
    couldn’t figure out how to easily do multi input slots for e.g. positions (int, int, int)
    default nodes are manually hooked up in PyFlow\Packages\PyFlowBase\__init__.py
    • node to create cube
    • node to set position

divide by 0 issue

when dividing by 0, there is no visual feedback. only an exception in the console. and output of a divide by 0 node is 0, which is wrong.

overall i m not as impressed as I expected I’d be.

  • The UI is great, but learning how to make a node is complex.
  • documentation is rough
  • the UI UX flow is also quite rough. e.g. creating a new node is not as fluent as in Unreal.
  • CLI is not a first class citizen. user is expected to create nodegraphs in the editor.

Notes

  • Serpens is a paid addon that does this already
